HRM 2 Row Plug, Stacking

HRM Series Style RAE | 10 – 100 contacts

3D Model Diagram & Dimensions

Back to Catalog

Connector Preview

Click and drag to rotate, scroll or pinch to zoom in and out.

Loading...

Unsupported Configuration

Visualization for this configuration does not exist. Please select a different configuration.

Data Sheet

Data Sheet - HRM 2 Row Plug, Stacking

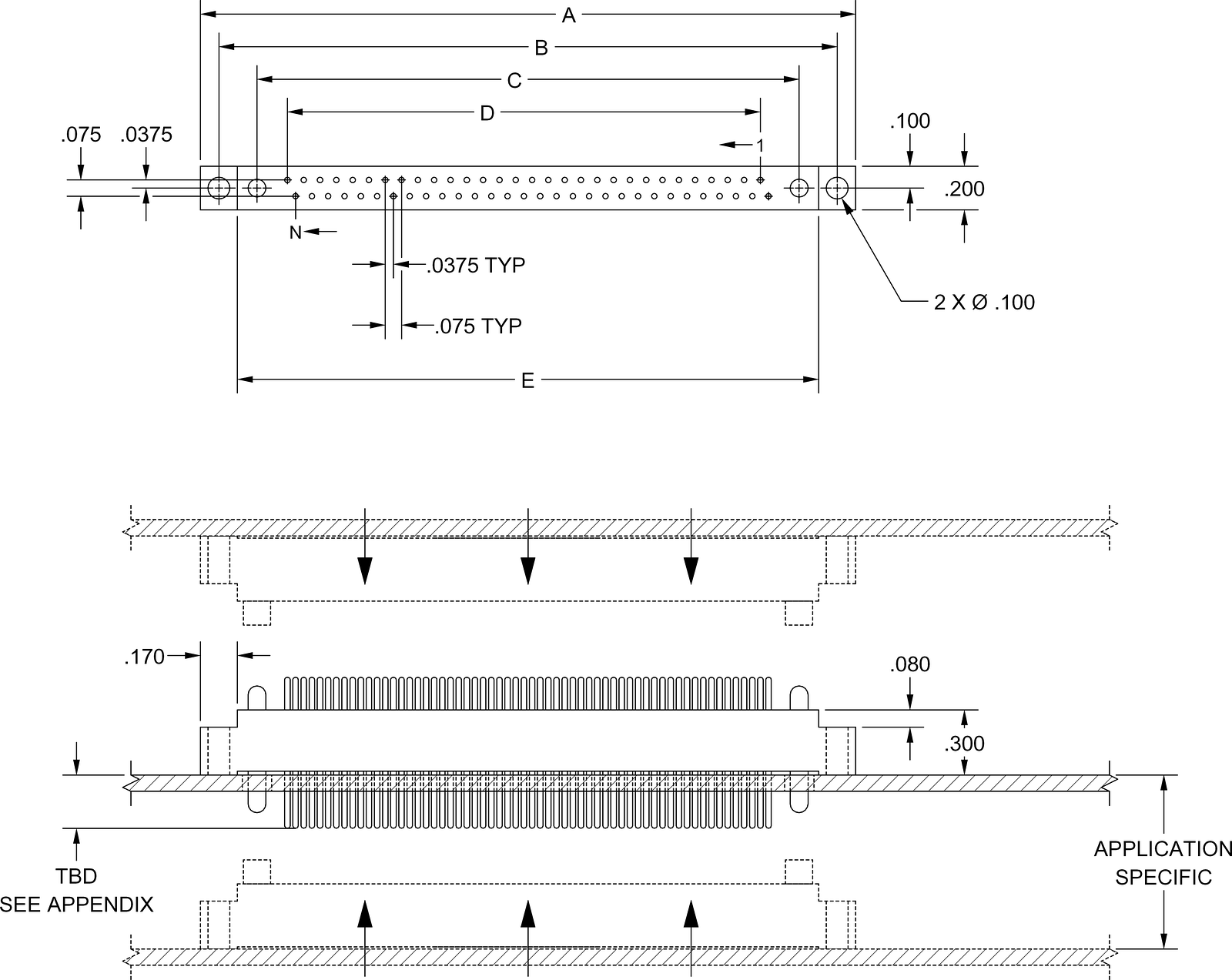

Dimensions

2 Row Connectors
No. Contacts A B C D E
10 1.138 0.968 0.618 0.300 0.798
20 1.513 1.343 0.993 0.675 1.173
30 1.888 1.718 1.368 1.050 1.548
40 2.263 2.093 1.743 1.425 1.923
50 2.638 2.468 2.118 1.800 2.298
60 3.013 2.843 2.493 2.175 2.673
70 3.388 3.218 2.868 2.550 3.048
80 3.763 3.593 3.243 2.925 3.423
90 4.138 3.968 3.618 3.300 3.798
100 4.513 4.343 3.993 3.675 4.173

Select Configuration

10

RAE

*Connector Preview does not show available styles. Additional information including styles is available in the product PDF downloads.

*Round guide hardware is for placeholder purposes only. Contact factory to specify desired hardware.

Download 3D Models

Download .STEP and .3DXML files for this product for use in your 3D CAD software. Includes all pin configurations.

First-time user? Click here.

Loading...

PDF Downloads

Appendices

  • Hardware Styles
  • Polarization Chart
  • Termination Styles
  • High-Speed Data Performance

    HRM

    DATA RATE: Up to 5 Gbps


    DIFFERENTIAL INSERTION LOSS: Roughly up to 12 GHz @ ‐1.2 dB


    DIFFERENTIAL RETURN LOSS: Roughly up to 12 GHz @ ‐10 dB


    FAR END CROSSTALK: Roughly up to 12 GHz @ ‐30 dB


    NEAR END CROSSTALK: Roughly up to 12 GHz @ ‐30 dB


    SI DATA: 50 OHM SINGLE‐ENDED; 100 OHM DIFFERENTIAL
