HMK 2 Row Interrupted, Socket, Compliant

HMK Series | 72 – 120 contacts

3D Model Diagram & Dimensions

Back to Catalog

Sorry, this feature is not supported in your browser. Please try Microsoft Edge, Chrome, Safari, or Firefox

Connector Preview

Click and drag to rotate, scroll or pinch to zoom in and out.

Unsupported Configuration

Visualization for this configuration does not exist. Please select a different configuration.

Data Sheet

Data Sheet - HMK 2 Row Interrupted, Socket, Compliant

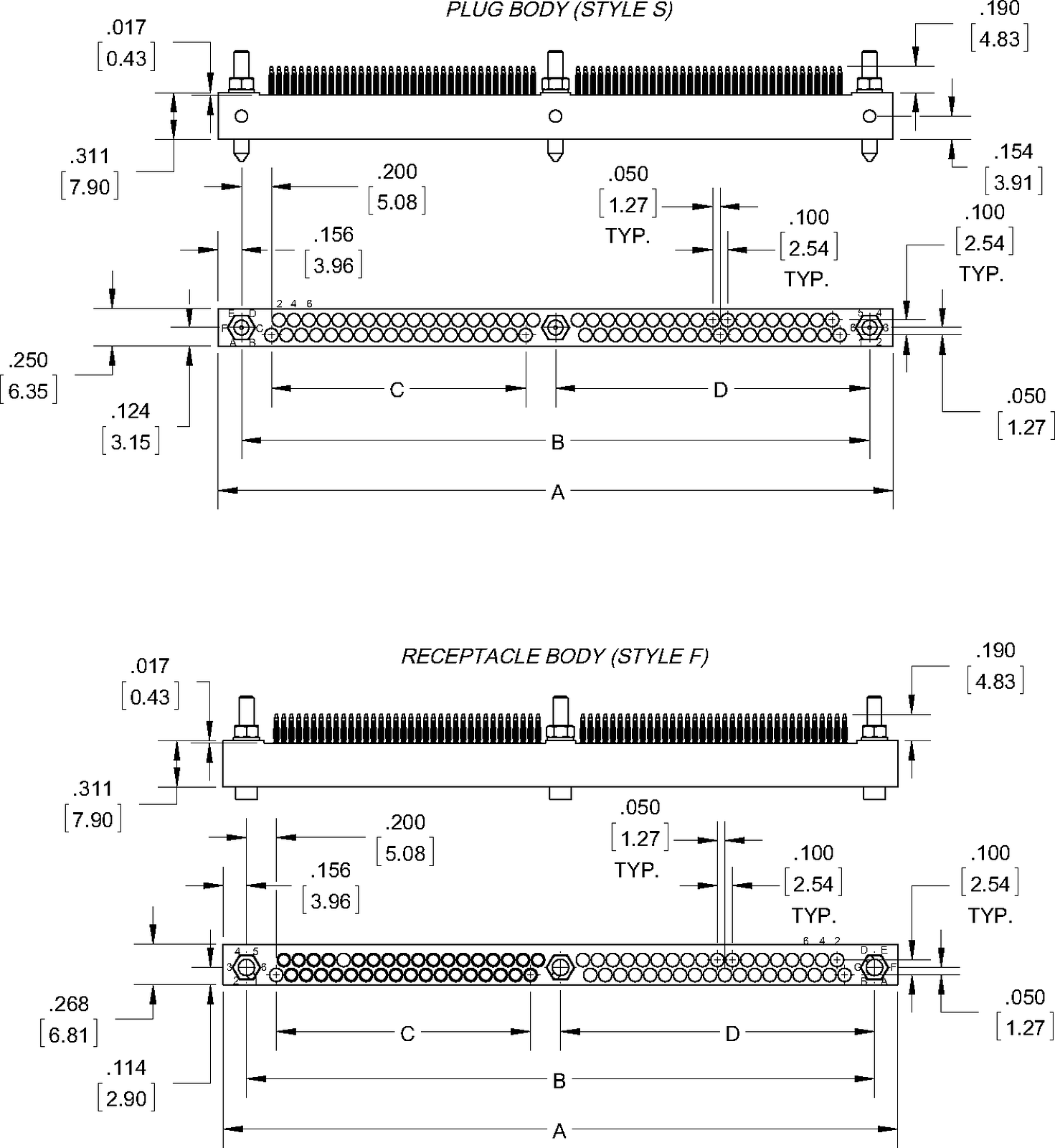

Dimensions

2 Row Connectors
No. Contacts A B C D
72 4.508 [114.50] 4.200 [106.68] 1.700 [43.18] 2.100 [53.34]
84 5.108 [129.74] 4.800 [121.92] 2.000 [50.80] 2.400 [60.96]
96 5.708 [144.98] 5.400 [137.16] 2.300 [58.42] 2.700 [68.58]
120 6.909 [175.50] 6.600 [167.64] 2.900 [73.66] 3.300 [83.82]

Select Configuration

72

72

FV

*Connector Preview does not show available styles. Additional information including styles is available in the product PDF downloads.

*Round guide hardware is for placeholder purposes only. Contact factory to specify desired hardware.

Download 3D Models

Download .STEP and .3DXML files for this product for use in your 3D CAD software. Includes all pin configurations.
