HVM 2 Row Plug, Straight

HVM Series Style MCE, MDE, MSE, MVE | 10 – 100 contacts

3D Model Diagram & Dimensions

Back to Catalog

Connector Preview

Click and drag to rotate, scroll or pinch to zoom in and out.

Loading...

Unsupported Configuration

Visualization for this configuration does not exist. Please select a different configuration.

Data Sheet

Data Sheet - HVM 2 Row Plug, Straight

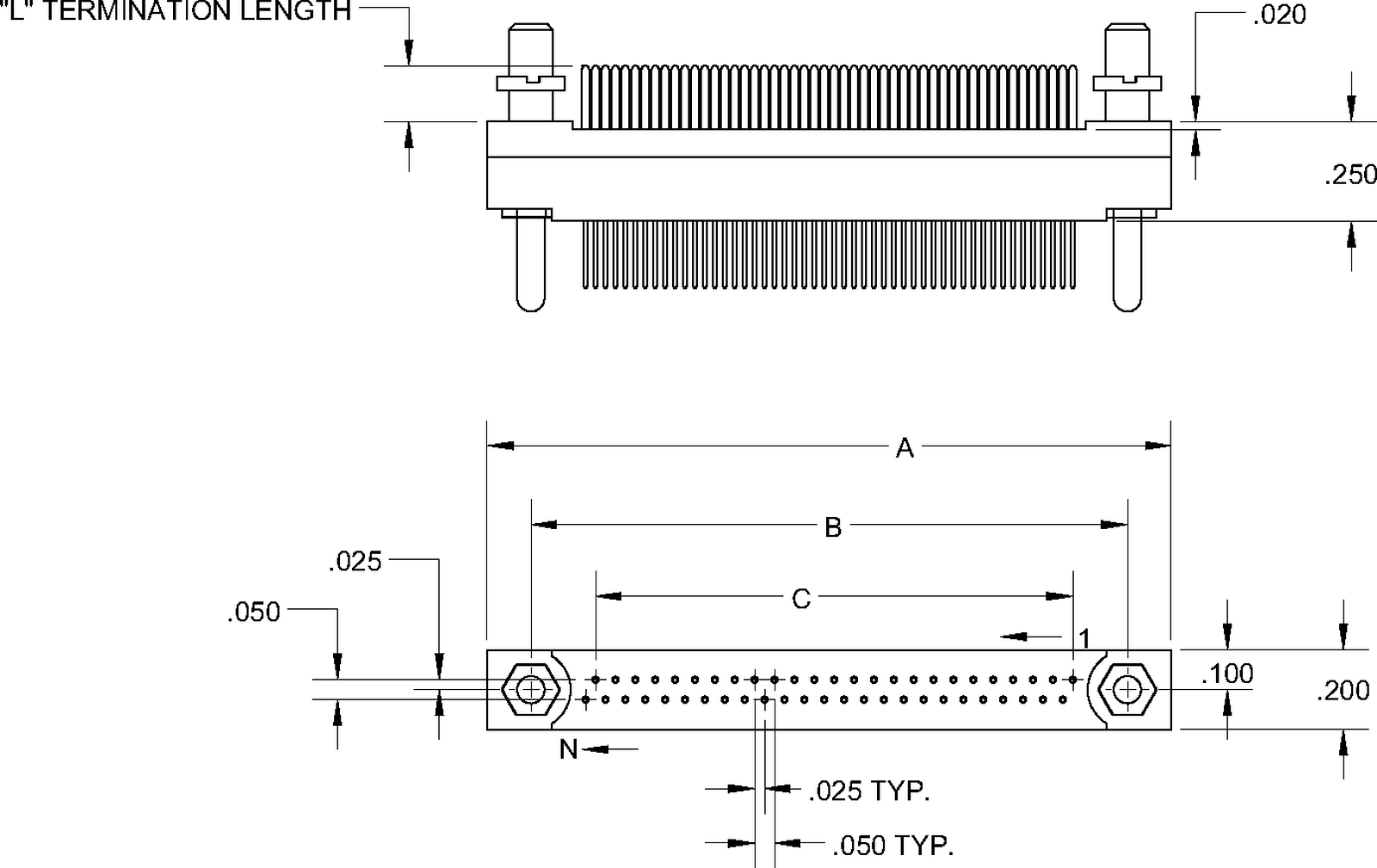

Dimensions

2 Row
No. Contacts A B C
10 0.720 0.500 0.200
20 0.970 0.750 0.450
30 1.220 1.000 0.700
40 1.470 1.250 0.950
50 1.720 1.500 1.200
60 1.970 1.750 1.450
70 2.220 2.000 1.700
80 2.470 2.250 1.950
90 2.720 2.500 2.200
100 2.970 2.750 2.450

Select Configuration

10

MCE

*Connector Preview does not show available styles. Additional information including styles is available in the product PDF downloads.

*Round guide hardware is for placeholder purposes only. Contact factory to specify desired hardware.

Download 3D Models

Download .STEP and .3DXML files for this product for use in your 3D CAD software. Includes all pin configurations.

First-time user? Click here.

Loading...

PDF Downloads

Appendices

  • Hardware Styles
  • Polarization Chart
  • PWB Pattern
  • Termination Styles
  • High-Speed Data Performance

    HVM

    DATA RATE: Up to 6 Gbps


    DIFFERENTIAL INSERTION LOSS: Roughly up to 18 GHz @ ‐0.8 dB


    DIFFERENTIAL RETURN LOSS: Roughly up to 18 GHz @ ‐15 dB


    FAR END CROSSTALK: Roughly up to 7 GHz @ ‐30 dB


    NEAR END CROSSTALK: Roughly up to 7 GHz @ ‐30 dB


    SI DATA: 50 OHM SINGLE‐ENDED; 100 OHM DIFFERENTIAL
