HGM 2 Row Plug, Right Angle, Compliant

Connector Preview

Click and drag to rotate, scroll or pinch to zoom in and out.

Unsupported Configuration

Visualization for this configuration does not exist. Please select a different configuration.

Data Sheet

Data Sheet - HGM 2 Row Plug, Right Angle, Compliant

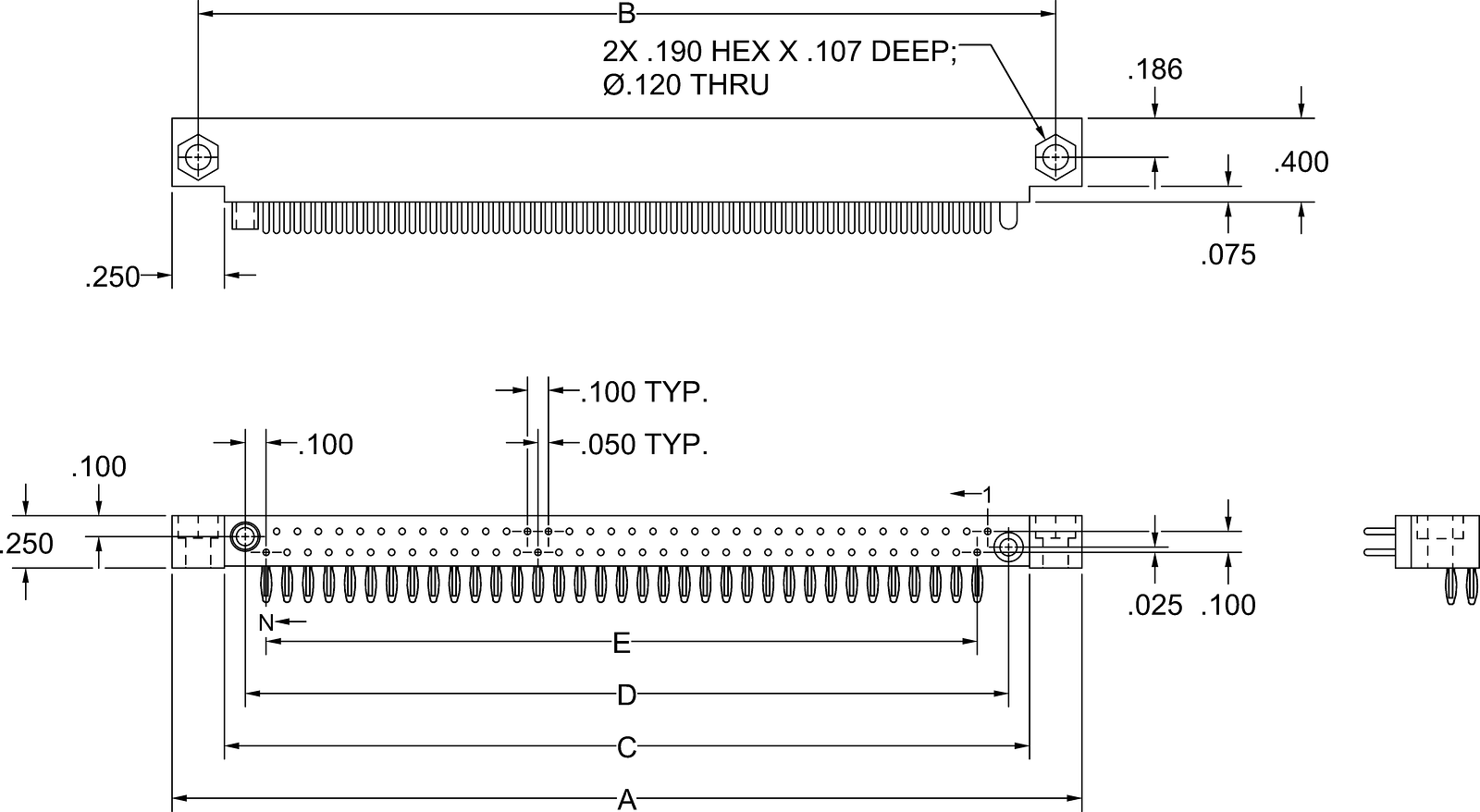

Dimensions

2 Row Connectors
No. Contacts A B C D E
10 1.350 1.100 0.850 0.650 0.400
14 1.550 1.300 1.050 0.850 0.600
20 1.850 1.600 1.350 1.150 0.900
24 2.050 1.800 1.550 1.350 1.100
26 2.150 1.900 1.650 1.450 1.200
30 2.350 2.100 1.850 1.650 1.400
36 2.650 2.400 2.150 1.950 1.700
40 2.850 2.600 2.350 2.150 1.900
44 3.050 2.800 2.550 2.350 2.100
50 3.350 3.100 2.850 2.650 2.400
54 3.550 3.300 3.050 2.850 2.600
56 3.650 3.400 3.150 2.950 2.700
60 3.850 3.600 3.350 3.150 2.900
66 4.150 3.900 3.650 3.450 3.200
70 4.350 4.100 3.850 3.650 3.400

Appendices

  • Hardware Styles
  • Polarization Chart
  • PWB Pattern
  • Termination Styles
  • High-Speed Data Performance

    HGM

    DATA RATE: Up to 3 Gbps


    DIFFERENTIAL INSERTION LOSS: Roughly up to 8 GHz @ ‐0.05 dB


    DIFFERENTIAL RETURN LOSS: Roughly up to 8 GHz @ ‐44 dB


    FAR END CROSSTALK: Roughly up to 8 GHz @ ‐30 dB


    NEAR END CROSSTALK: Roughly up to 8 GHz @ ‐30 dB


    SI DATA: 50 OHM SINGLE‐ENDED; 100 OHM DIFFERENTIAL
