HGM 2 Row Plug, Straight

Sorry, this feature is not supported in your browser. Please try Microsoft Edge, Chrome, Safari, or Firefox

Connector Preview

Click and drag to rotate, scroll or pinch to zoom in and out.

Unsupported Configuration

Visualization for this configuration does not exist. Please select a different configuration.

Data Sheet

Data Sheet - HGM 2 Row Plug, Straight

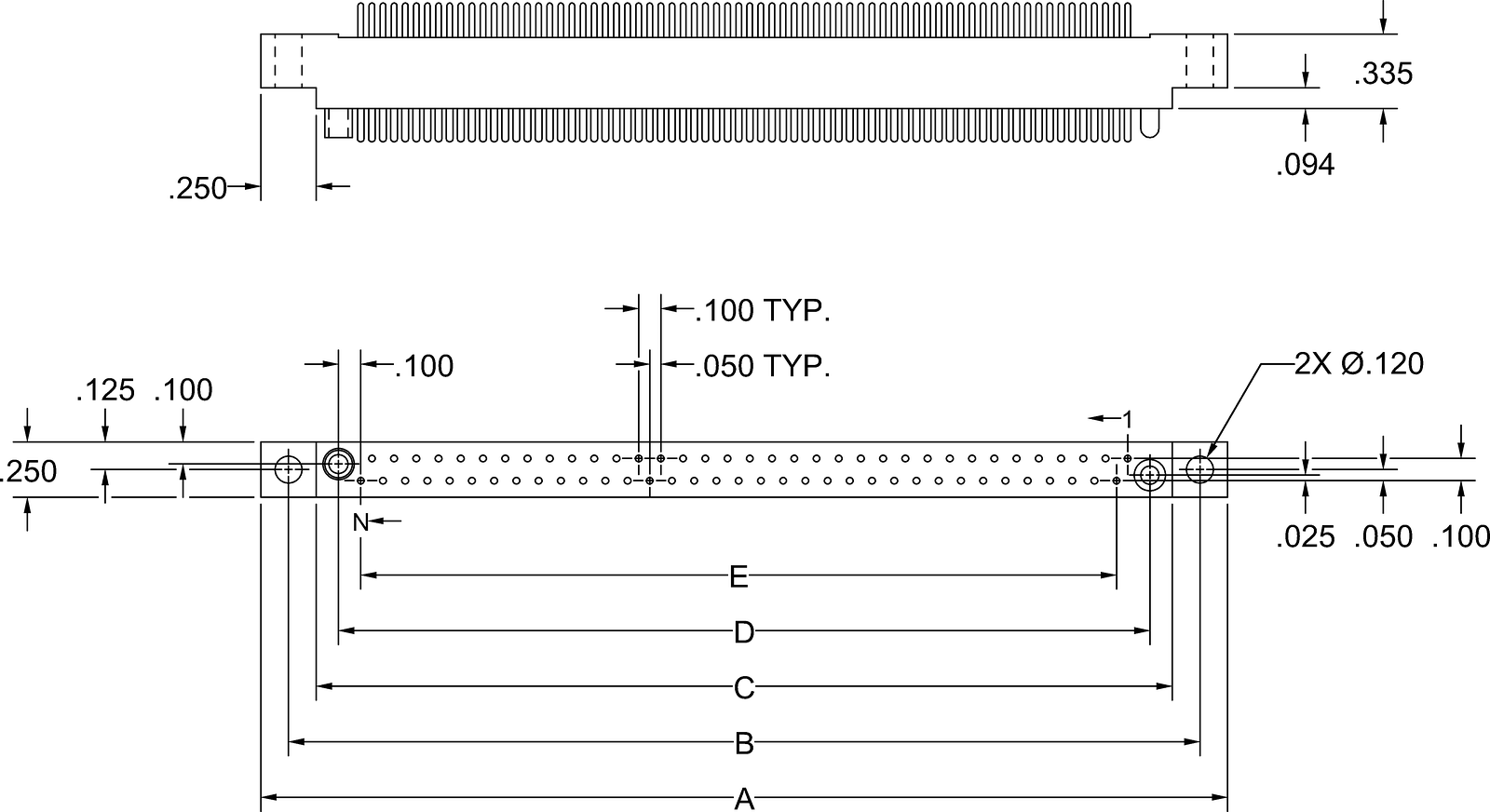

Dimensions

2 Row Connectors
No. Contacts A B C D E
10 1.350 1.100 0.850 0.650 0.400
14 1.550 1.300 1.050 0.850 0.600
20 1.850 1.600 1.350 1.150 0.900
24 2.050 1.800 1.550 1.350 1.100
26 2.150 1.900 1.650 1.450 1.200
30 2.350 2.100 1.850 1.650 1.400
36 2.650 2.400 2.150 1.950 1.700
40 2.850 2.600 2.350 2.150 1.900
44 3.050 2.800 2.550 2.350 2.100
50 3.350 3.100 2.850 2.650 2.400
54 3.550 3.300 3.050 2.850 2.600
56 3.650 3.400 3.150 2.950 2.700
60 3.850 3.600 3.350 3.150 2.900
66 4.150 3.900 3.650 3.450 3.200
70 4.350 4.100 3.850 3.650 3.400
