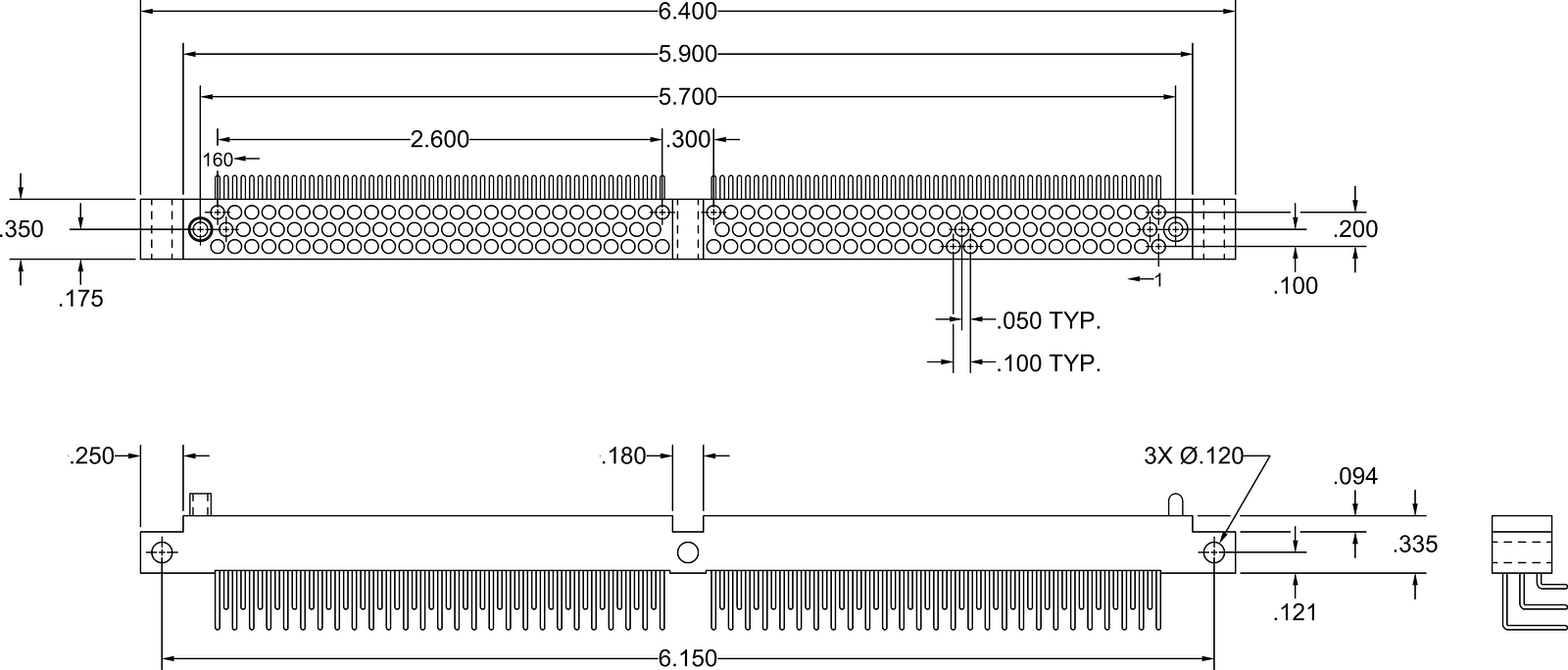

HGM 3 Row Receptacle, Right Angle

Connector Preview

Click and drag to rotate, scroll or pinch to zoom in and out.

Unsupported Configuration

Visualization for this configuration does not exist. Please select a different configuration.

Data Sheet

Data Sheet - HGM 3 Row Receptacle, Right Angle

Appendices

  • Hardware Styles
  • Polarization Chart
  • PWB Pattern
  • Termination Styles
  • High-Speed Data Performance

    HGM

    DATA RATE: Up to 3 Gbps


    DIFFERENTIAL INSERTION LOSS: Roughly up to 8 GHz @ ‐0.05 dB


    DIFFERENTIAL RETURN LOSS: Roughly up to 8 GHz @ ‐44 dB


    FAR END CROSSTALK: Roughly up to 8 GHz @ ‐30 dB


    NEAR END CROSSTALK: Roughly up to 8 GHz @ ‐30 dB


    SI DATA: 50 OHM SINGLE‐ENDED; 100 OHM DIFFERENTIAL
